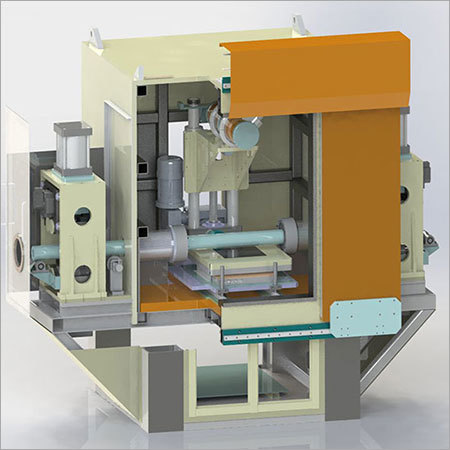

Boiler Welding Pipe Inspection System

Boiler Welding Pipe Inspection System
Boiler Welding Pipe Inspection System
Send Inquiry
Product Code : 01
Product Description
Boiler Welding Pipe Inspection System


This system is used for on-line inspection of boiler welding pipe. The whole system’s design for electrical control meets the requirements of loading material, clamp, sending, rotation, unloading material, sorting, motor action, cylinder action, rotating adjustment, speed adjustment and etc. During inspection, the rotating speed can be adjusted, the movement of mechanical platform and optical grating can be adjusted, and the welding images can be captured.

Main technical parameter:

  • applicable pipe diameter:Φ20 ~ Φ114mm,δ= 2~18mm(Fe),Lmax=60 m
  • voltage of x ray tube:30kV-320kV
  • industrial imaging system:digital imaging plat panel
  • mechanical platform:can be up and down in the range of 0-200mm
  • rotation angle:0-30°
  • system resolution:25-55Lp/cm
  • system sensitivity:1.0-2.0%
Trade Information
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Asia
