Cylinder Inspection System

Cylinder Inspection System
Cylinder Inspection System
Send Inquiry
Product Code : 02
Product Description

Cylinder Inspection System

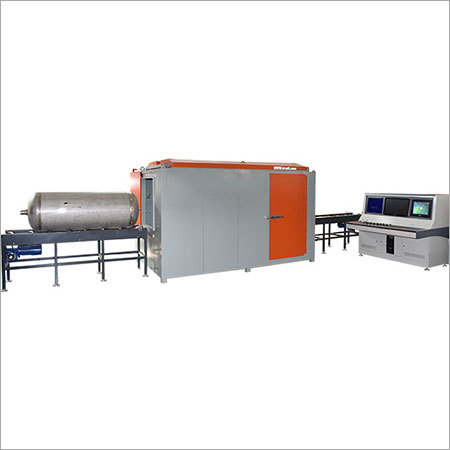

This system is mainly composed of the X-ray machine, industrial TV, image processing, electrical control system, scene monitoring, X-ray protection system and so on. It is appropriate for the detecting of the circumferential welds and the longitudinal welds of LNG cylinders.
Main technical parameter

  • Diameter: 300mm- 800mm
  • X-ray tube voltage: 30-225V
  • Length: 400mm-2200mm
  • Load of assembly lines: 500Kg
  • System resolution:25-35LP/cm
  • System sensitivity:1.0-2.0%

Mechanical system:

Electrical control system:
The control center is PLC and the driving system is composed of servo stepping and frequency regulation. Its integrated workstation can provide data and complete the detecting of circumferential and longitudinal welds cooperated with automatic procedure and image processing software.

Image Processing

  • Interface information of Chinese and English windows, menu and prompt;
  • Image dynamic real-time display and single or multiple frames continuous acquisition;
  • Integral noise reduction acquisition of 0-255 images;
  • Positive and negative film conversion, zoom in/out, moving of static or dynamic images;
  • Adjustment of image brightness and contrast;
  • Multiple dynamic or static images displaying and comparing in one screen;
  • Image real-time dynamic storage and dynamic playback;
  • Measuring of distance and angle;
  • Grey analysis of points and lines;
  • Auto image acquisition, storage and splicing
