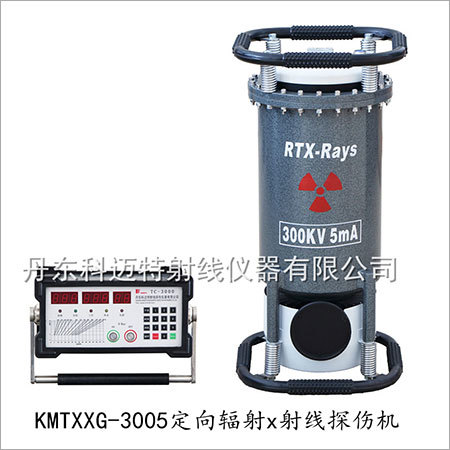

Directional Portable X Ray Machine

Directional Portable X Ray Machine
Directional Portable X Ray Machine
Send Inquiry
Product Code : XXQ/XXG
Product Description

The elevated voltage coil in our Directional Portable X-Ray Machine adapts imported copper wire that has longevity and high-temperature resistance. In addition, the regulator body is a compact and low weight that has a mechanical warming-up feature to assure precise operation. The connection wire of our x-ray machine is an elastomeric material that has wear resistance and strong tensile strength better than different general wires in the present market. Moreover, the cooling fin of provided Directional Portable X-Ray Machine has additional plates than general machines in various factories. Addition, the fin has a better cooling impact.

Directional x ray machines
(glass tube)
Voltage adjustment kV) Tube current mA) Focus size mm) Working cycle Input power kVA) radiation angle Penetration for A3 steel mm) Generator size mm) Generator weight kg) Controller weight kg)
XXQ-120 40-120 3 1.5x1.5 1 1.5 40o 7 130x560 8 12
XXQ-160 70-160 5 1.5x1.5 1 2 40o 19 180x590 16 12
XXQ-200 120-200 5 1.5x1.5 1 2.5 40o 29 285x285x650 23 12
XXQ-250 150-250 5 2.0x2.0 1 3.6 40o 39 330x330x750 34 12
XXQ-300 170-300 5 2.5x3.0 1 3.6 40o 50 330x330x840 40 12
XXQ-320 170-320 5 3.5x3.5 1 3.6 40o 60 330x330x820 43 12
Directional x ray machines
(ceramic tube)
Voltage adjustment kV) Tube current mA) Focus size mm) Working mode Input power kVA) radiation angle Penetration for A3 steel mm) Generator size mm) Generator weight kg) Generator weight kg)
XXG-160 70-160 5 1.5x1.5 1 2 40o 19 200x200x650 18 12
XXG-200 120-200 5 2.0x2.0 1 2.5 40o 29 285x285x620 21 12
XXG-250 150-250 5 2.0x2.0 1 3.6 40o 39 330x330x640 31 12
XXG-300 170-300 5 2.5x2.5 1 3.6 40o 50 330x330x700 38 12
XXG-250A 150-250 5 2.0x2.0 1 3.6 40o 39 285x285x650 23 12
XXG-300A 170-300 5 2.5x2.5 1 3.6 40o 50 285x285x685 32 12
Trade Information
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Asia
