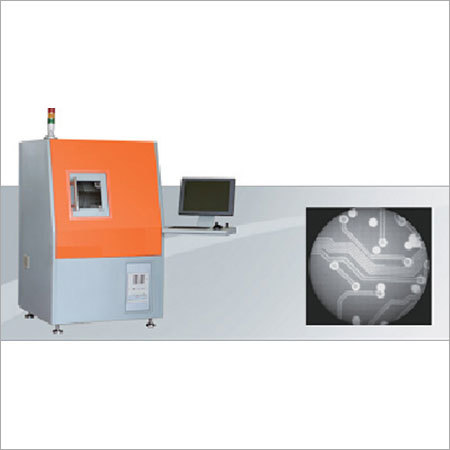

Real-Time Imaging X-Ray Inspection System

Real-Time Imaging X-Ray Inspection System
Real-Time Imaging X-Ray Inspection System
Send Inquiry
Product Code : 01
Product Description
X-Ray Real-Time Imaging Inspection System

Introductions

X-ray real-time imaging inspection system is apply to Non-destructive test of electronic components, plastic components, tin metal components and medicament etc. The system is by X-ray source system, image capture system, mechanical movement system, radial protections and security system etc.

System technical parameter
  • X-ray source
  • X-ray tube voltage:40-160kv
  • Max.power:80w
  • X-ray tube current :0-500μA
  • Working model: continuous
  • Focal spot size:0.1-0.5mm
  • Control model: RS232
  • Image capture system
  • Intensifiler:4 inch .Standard
  • CCD Camera:2/3 inch
  • Resolution:30LP/cm
Image Processing Unit
  • Windows、Menu、Prompt information etc.
  • May record inspection date、manufacture date and workpiece coding
  • Defect size, area measuring
  • Contrast and edge enhancement
  • 16-256 images denoise
  • Pseudoclor processing, plus-minus change
  • Image zoom in/out
  • Value filtering edge inspection, smoothness

Digital plat panel

  • Material of imaging panel:non-crystal silicon
  • Imaging system:204.8x204.8mm
  • Pixel Size:0.2mm
  • Scanning frequency:50fps
  • Radiation range:up to 15MeV
  • ADC:16bit
  • Dynamic range:>88dB

Linear Detector

  • Pixel:0.083mm
  • Dynamic range:12 bit
  • Radiation source:160-450kV
  • Exposure time:1ms-40000ms
  • Maximum length of cable:15m
  • System Resolution:55Lp/cm
  • Image intensifier + CCD
  • System Resolution:28-35Lp/cm
  • System Resolution:1.5-2.0
  • Input screen:150-400 mm
  • CCD Pixel:40-100
  • Dynamic Range:8-12bit
Trade Information
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Asia
