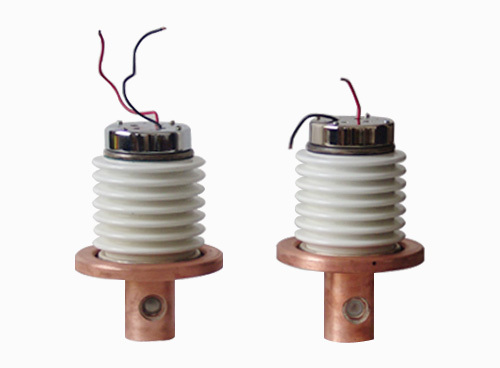

Ripple Ceramic X-Ray Tube
Ripple Ceramic X-Ray Tube
Product Code : XT
Product Description
The Ripple Ceramic X Ray Tubes we deal in are firm, reliable and sturdy products. The controller adopts the assimilation technology to render the inner configuration more practical with imported parts, and more lasting electric parameter. The products come with a prolonged X-ray life as well as improved reliability. These are applicable for spaceflight, shipbuilding, metallurgy, chemical, power supply, automobiles etc. Also, these can serve the heavy machine manufacturer industry as well as bridge building industry. The Ripple Ceramic X Ray Tubes we offer come with precision as well as accurateness in their functional life. These come with shudder resistance as well as improved serviceability in the x-ray procedures.
Details:
| SN. | Model | Tube voltage (KVp) | Tube current (mA) | Focal size (mm) | Filament voltage (V) | Filament current (A) | Radiation angle | Compatible Machine |
| 1 | XT9 | 160 | 5 | 1.5×1.5 | 4～4.5 | 4 | 40°+5° | XXG-1605 |
| 2 | XT9 (B) | 160 | 5 | 1.0×2.0 | 4～4.5 | 4 | 25°×360° | XXGH-1605 |
| 3 | XT9 (C) | 160 | 5 | 1.0×2.0 | 4～4.5 | 4 | 30°×260° | XXGHZ-1605 |
| 4 | XT2 | 200 | 5 | 2.0×2.0 | 5.8～6.2 | 4 | 40°+5° | XXG-2005 |
| 5 | XT2 (B) | 200 | 5 | 1.0×2.4 | 5.8～6.2 | 4 | 25°×360° | XXGH-2005 |
| 6 | XT2 (C) | 200 | 5 | 1.0×2.5 | 5.8～6.2 | 4 | 30°×360° | XXGHZ-2005 |
| 7 | XT3 | 250 | 5 | 2.0×2.0 | 5.8～6.2 | 4 | 40°+5° | XXG-2505 |
| 8 | XT3(B） | 250 | 5 | 1.0×2.4 | 5.8～6.2 | 4 | 25°×360° | XXGH-2505 |
| 9 | XT3 (C) | 250 | 5 | 1.0×2.5 | 5.8～6.2 | 4 | 30°×360° | XXGHZ-2505 |
| 10 | XT5 | 300 | 5 | 2.5×2.5 | 5.8～6.2 | 4 | 40°+5° | XXG-3005 |
| 11 | XT5 (B) | 300 | 5 | 1.0×3.4 | 5.8～6.2 | 4 | 25°×360° | XXGH-3005 |
| 12 | XT5 (C) | 300 | 5 | 1.0×3.5 | 5.8～6.2 | 4 | 30°×360° | XXGHZ-3005 |
| 13 | XT7 | 350 | 5 | 3.0×3.0 | 6～7 | 4 | 40°+5° | XXG-3505 |
| 14 | XT7（B） | 350 | 5 | 1.5×3.4 | 6～7 | 4 | 25°×360° | XXGH-3505 |
| 15 | XT7（C） | 350 | 5 | 1.5×3.5 | 6～7 | 4 | 30°×360° | XXGHZ-3505 |
