Spiral Pipe Welds Inspection System

Spiral Pipe Welds Inspection System
Spiral Pipe Welds Inspection System
Send Inquiry
Product Code : 01
Product Description

Spiral Pipe Welds Inspection

Huge damages suffered caused of the leakage or explosion of the transportation pipeline of petrol or gas. The problems are often incurred by OEM’s during the manufacturing the pipes. A major inspection challenge facing the pipe industries is to examine welds during the manufacturing. The quality of welds of the transportation pipeline is mainly determined welding. So a lot of work to do in the pipe manufacturing is testing the pipe welds. The x-ray based inspection is one of indispensable processes.

We have designed and built the many spiral/straight pipe welds inspection systems to reduce the problem and assist the OEM in meeting customer goals in the past years.

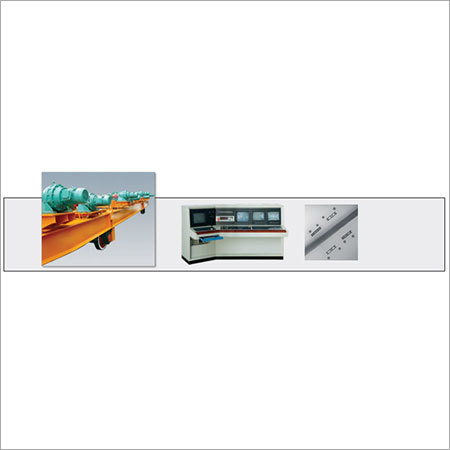

The system consists of X-ray system, monitor, image process system, pipe carrier, electrical control system, environment monitoring system and x-ray shield room. It is designed for the spiral/straight welded pipe inspection.

Technical specification

  • Min. object-detecting ability: 0.3 mm
  • System resolution: 18 – 35 lp/cm
  • System static sensitivity: 1.5 – 2.0 %
  • System dynamic sensitivity: 1.8 – 2.5%
