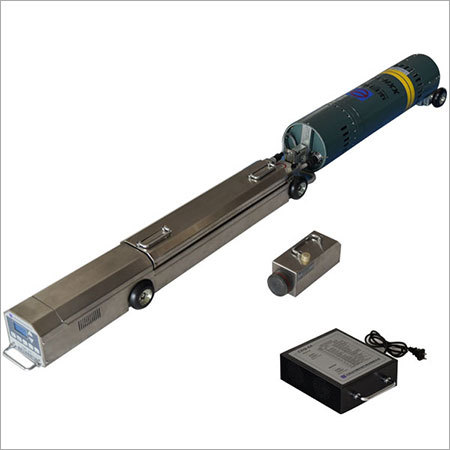

X-Ray Pipeline Crawlers

X-Ray Pipeline Crawlers
X-Ray Pipeline Crawlers
Send Inquiry
Product Code : XGT
Product Description

X-ray pipeline crawler helps to assure quality in pipeline construction. The inspection for welding seams is indispensable for quality assurance in pipelines, whether for steel or other special alloys. Welding quality in pipes for gas or petrol transportation must be inspected. X-ray pipeline crawler technology has played a significant role in the field of welding inspection.

Our X-Ray Pipe Line Crawlers are available in tube form that can be effectively adjusted for ensuring the strong thickness of films conforms. These crawlers have integrated electronic control system for constant speed, current, and torque. In addition, after employing our crawlers, customers will be able to save over 40percent of electricity. A military grade motor is alternatively incorporated in provided X-Ray Pipe Line Crawlers that has high stability and long life-span. Moreover, these crawlers can go through any electric welding machine sans being hindered by existing magnetic field. The low speed and low start positioning feature make positioning precisely in the machine.

Technical Parameter of pipeline crawler

Technical Item / Model

XGT-1D

XGT-2DR

XGT-2S

XGT-3S

Working temperature range

-25℃~70℃

-25℃~70℃

-25℃~70℃

-25℃~70℃

Working humidity range

≤90%

≤90%

≤90%

≤90%

Crawling speed

12-15m/min

15-18m/min

15-18 m/min

15-18 m/min

Crawling distance

≤6km

≤6km

≤4km

≤6km

Applicable pipe diameter range

Φ190~Φ406

Φ273~Φ711

Φ377~Φ820 mm

Φ508~Φ1200 mm

Positioning precision

±2mm

±2mm

±2mm

±2mm

Crawling gradient

≤25°

≤25°

≤40°

≤40°

Turning radius

≥7D

≥7D

≥7D

≥7D

Motor rate

150W

200W

200W

250W

Positioning mode

Magnetic positioning

Magnetic positioning

Magnetic positioning

Magnetic positioning

Drive mode

Single driver

Single driver

Double drivers

Double drivers

Max. output voltage of tube

160Kv, (60Kv-160Kvadjustable

200Kv, (150Kv-200Kvadjustable

200Kv,

(120Kv-200Kv adjustable

250Kv,

(190Kv-250Kv adjustable

Max. output current of tube

3mA

3mA

3mA

3mA

Focal size of x ray

1.0×1.6mm

1.0×2.5mm

1.0×2.0mm

1.0×2.5mm

Penetration thicknessA3 steel

Thickness≤16mm, Density≥1.5

Thickness≤22mm, Density≥1.5

Thickness ≤22mm, Density ≥1.5

Thickness ≤30mm, Density ≥1.5

Exposure time

10s~5min adjustable

10s~5min adjustable

10s~5min adjustable

10s~5min adjustable

Power supply

96V, 10Ah, 8 pieces lead-acid batteries

108V, 10Ah, 9 pieces lead-acid batteries

108V, 10Ah, 9 pieces lead-acid batteries

120V, 20Ah, 10 pieces lead-acid batteries

Radiation coverage angle

360×30°

360×30°

360×30°

360×30°

Crawler body length

1400mm

1106mm

1180 mm

1580 mm

Crawler body weight

20kg

21kg

49 kg

48 kg

Tube head length (including supporter and controlling parts)

800mm

580mm

1000 mm

900 mm

Tube head weight (including supporter and controlling parts)

23kg

16.5kg

26 kg

33 kg

Length of tube head supporter

300mm

105mm

200 mm

220 mm

Dimension of battery case

615×135×130mm

610×160×140mm

470×155×210 mm

800×190×190 mm

Weight of battery case

22kg

31kg

33 kg

60 kg

Total length of the pipeline crawler

2200mm

1791mm

2380 mm

2700 mm

Total weight of the pipeline crawler

65kg

68.5kg

108 kg

141 kg
